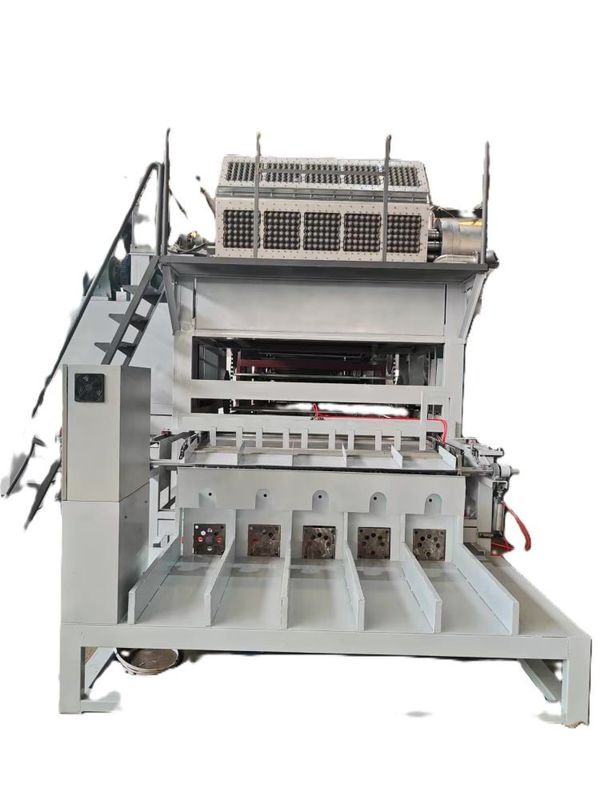

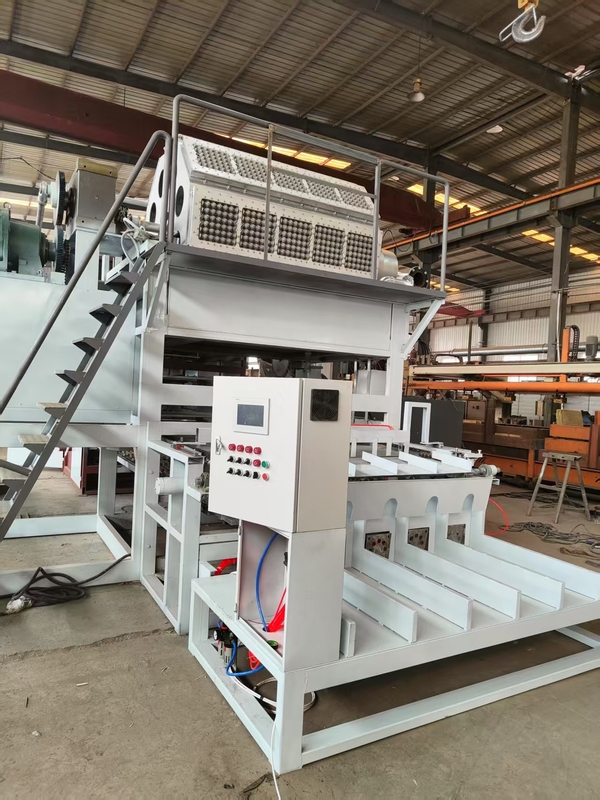

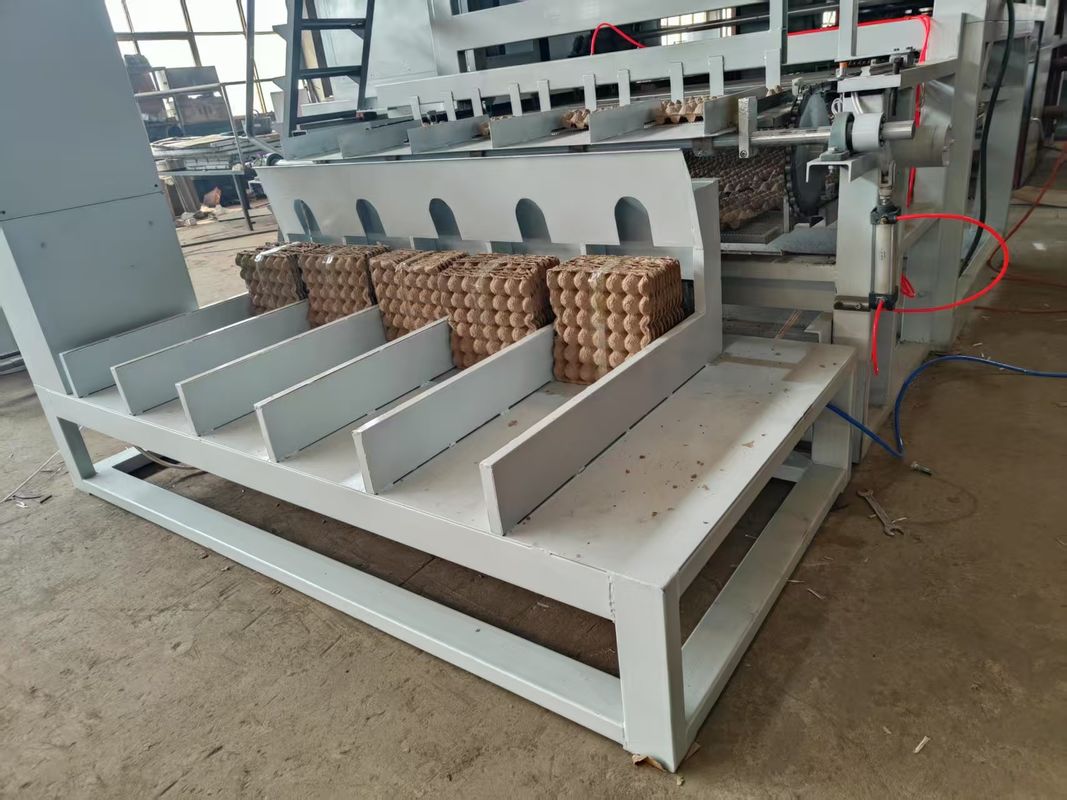

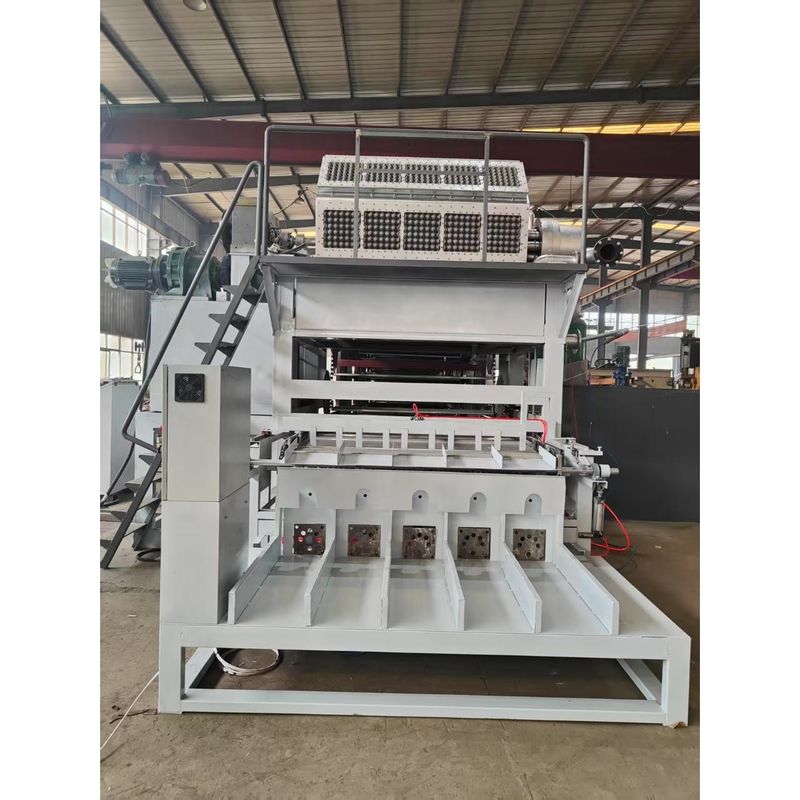

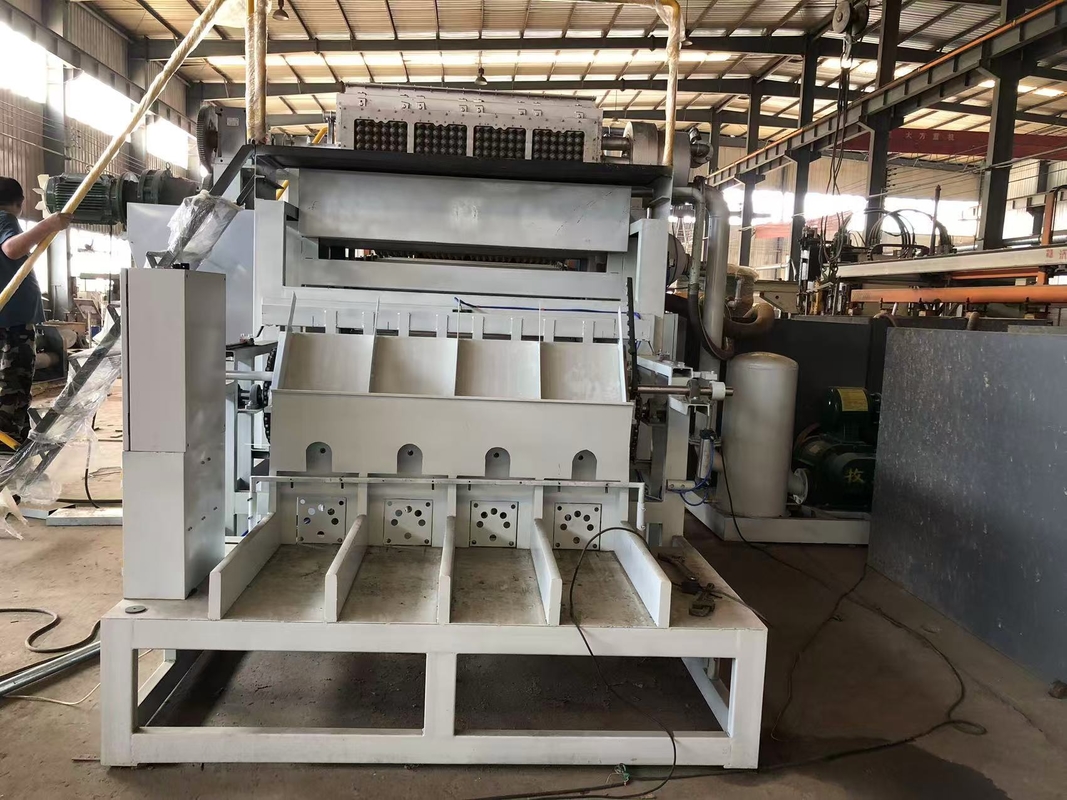

Automatic Paper Pulp Egg Tray Production Line 5000 pcs/hr Egg Tray Making Machine
Product Information
This is an automatic egg tray production line with dryer. Dryer type is optional for brick dryer type, metallic dryer type.
Main sections of the paper egg tray machine production line:
1. pulping system: including the hydrapulper, vibrating screen, water pump, pulp pump, mixer with knife, etc..to make the wastepaper into paper pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
4+4 molds paper egg tray machine forming part 3000pcs/h capacity
Other simple structure egg tray machine we can make
1*2 molds paper egg tray machine 700pcs/h capacity forming part
4 molds paper egg tray machine forming system 1300pcs/h capacity

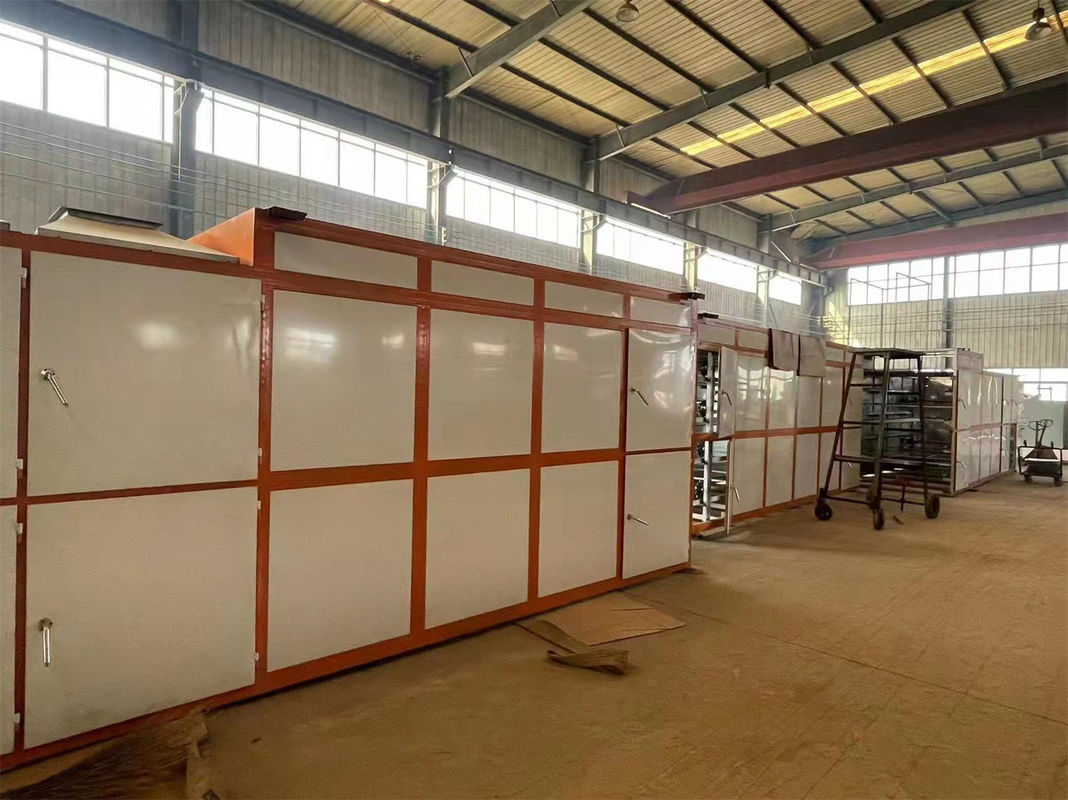

3. Dryer system for egg tray machine( Optional for customer)
Metalic dryer model (4 layers, 6 layers, customized as per customer's needs) for egg tray machine
Single layer brick dryer type
Heat source (fuel) for egg tray machine dryer: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Other Various capacity machine we can make
|
Model
|
Capacity
|
Forming machine
|
Drying system
|
Workshop space
|
Rated power
|
|
WY-1500S
|
1500-2000pcs/hr
|
3molds *4faces
|
Single-Layer Metal
|
55m*10m*6m
|
130KW
|
|
Rotary type
|
|
WY-1500M
|
1500-2000pcs/hr
|
3molds *4faces
|
4 Layers
|
35m*10m*6m
|
120KW
|
|
Rotary type
|
Metal
|
|
WY-2000S
|
2000-2500pcs/hr
|
4molds *4faces
|
Single-Layer Metal
|
60m*10m*6m
|
165KW
|
|
Rotary type
|
|
WY-2000M
|
2000-2500pcs/hr
|
4molds *4faces
|
4 Layers
|
40m*10m*6m
|
145KW
|
|
Rotary type
|
Metal
|
|
WY-3000S
|
3000pcs/hr
|
3molds *8faces
|
Single-Layer Metal
|
65m*15m*6m
|
209KW
|
|
Rotary type
|
|
WY-3000M
|
3000pcs/hr
|
3molds *8faces
|
4Layers
|
50m*15m*6m
|
189KW
|
|
Rotary type
|
Metal
|
|
WY-4000S
|
4000pcs/hr
|
4molds *8faces
|
Single-Layer Metal
|
75m*15m*6m
|
239KW
|
|
Rotary type
|
|
WY-4000M
|
4000pcs/hr
|
4molds *8faces
|
4 Layers
|
50m*15m*6m
|
223KW
|
|
Rotary type
|
Metal
|
|
WY-5000S
|
5000pcs/hr
|
5molds *8faces
|
Single-Layer Metal
|
70m*15m*6m
|
298KW
|
|
Rotary type
|
|
WY-5000M
|
5000pcs/hr
|
5molds *8faces
|
4 Layers
|
55m*15m*6m
|
273KW
|
|
Rotary type
|
Metal
|
|
WY-6000S
|
6000pcs/hr
|
6molds *8faces
|
Single-Layer Metal
|
80m*15m*6m
|
365KW
|
|
Rotary type
|
|
WY-6000M
|
6000pcs/hr
|
6molds *8faces
|
4 Layers
|
55m*15m*6m
|
326KW
|
|
Rotary type
|
Metal
|
5000pcs/h capacity 5*8 molds egg tray machine production line technical data
|
Egg Tray Mold Quantity
|
40(5pcs*8)
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity(pcs/hour)
|
5000
|
|
Net weight per piece (gram)
|
70-75
|
|
Waste paper consumption
|
375kg/h
|
|
Water Consumption
|
1.1t/h
|
|
Natural Gas Consumption of Dryer
|
150cbm/h
|
|
Boiler model (natural gas fuel Kcal)
|
1800*103
|
|
Worker requirement
|
10-12
|
|
Power Requirement
|
Without dryer
|
Not suggested
|
|
With dryer
|
180kw
|
|
Area of workshop
|
With dryer
|
600m2
Dryer 36m
|
|
Container Requirement
|
Without dryer
|
Not suggested
|
|
With dryer
|
40hq*4
|
|
Remarks:
1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
|
Payment Terms
|
Delivery Time: 98 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1year after the Egg tray machine received.
|
|
Terms of delivery
|
EXW Jinan, China
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
