New Wholesale WANYOU Automatic Recycled Paper Egg Tray Machine Pulp Molding Machine PLC Control Touch Screen Panel Bearing Motor Gear
Product Information

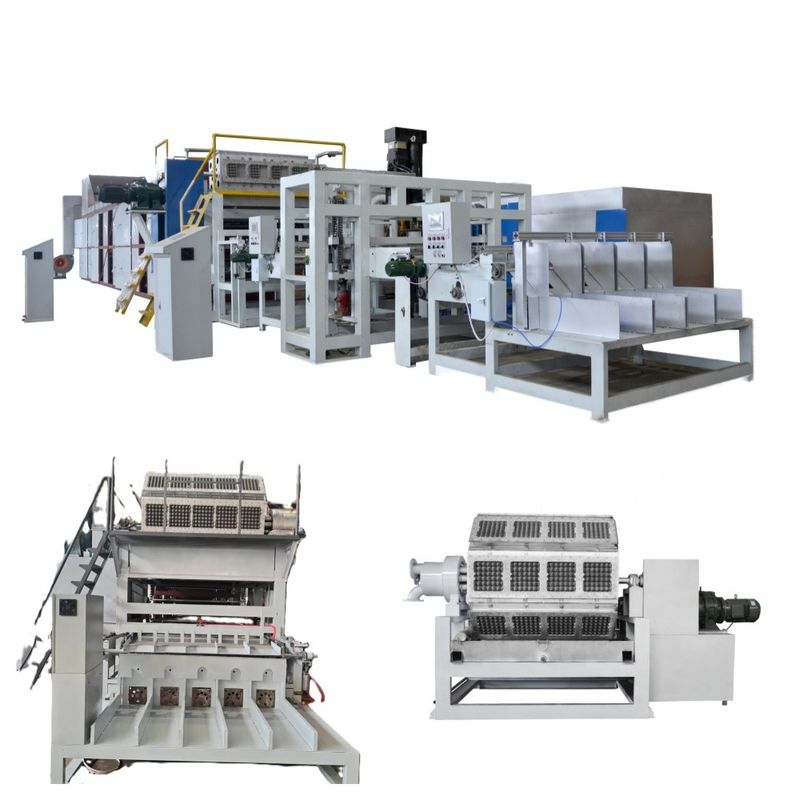

There are 2 models, semi automatic one without dryer and automatic one with metallic dryer for this egg tray machine production line.
Main sections of the paper egg tray machine:
1. pulping system:
Put the waster paper into the hydraulic pulper , the paper and water will mix in hydraulic pulper ,then go to the refiner machine, refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool, the pulp will go to the forming machine pulp tank .

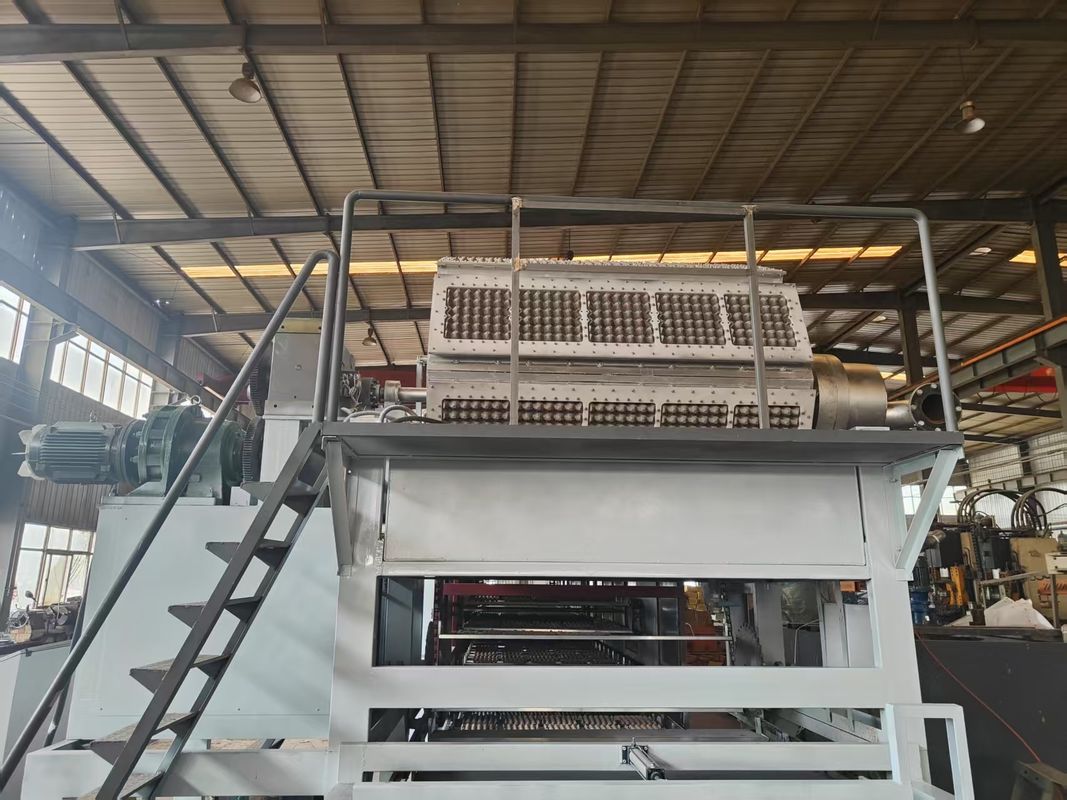

2. forming system
The Egg Tray Molding Forming System consists of various equipment and dies.
The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.

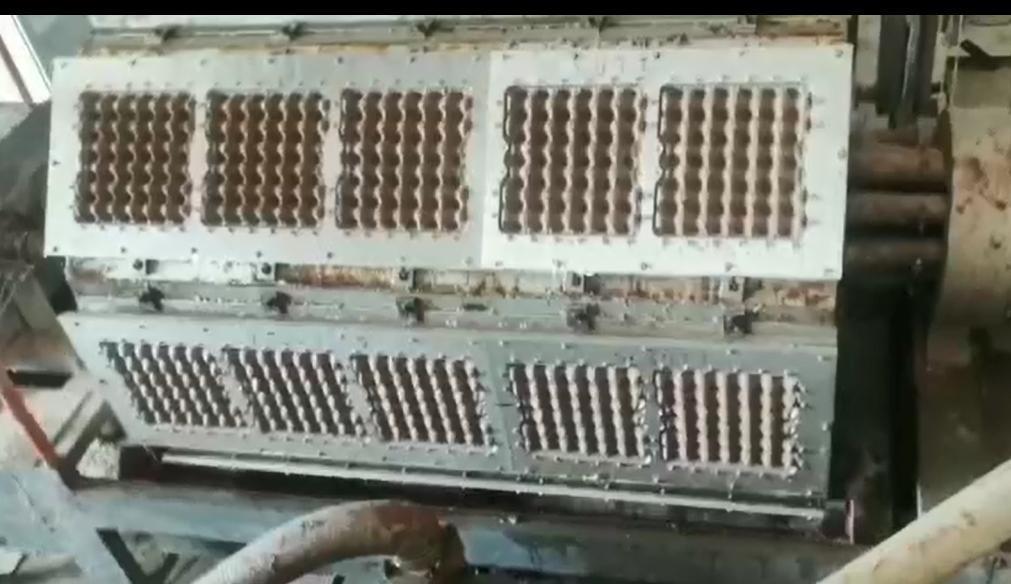

The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
5*8molds rotary forming type 5000pcs/h paper egg tray production line
3. Dryer system
There are burners and blowers on the two sides of the drying line.
can use gas,diesel,coal for Boiler burner

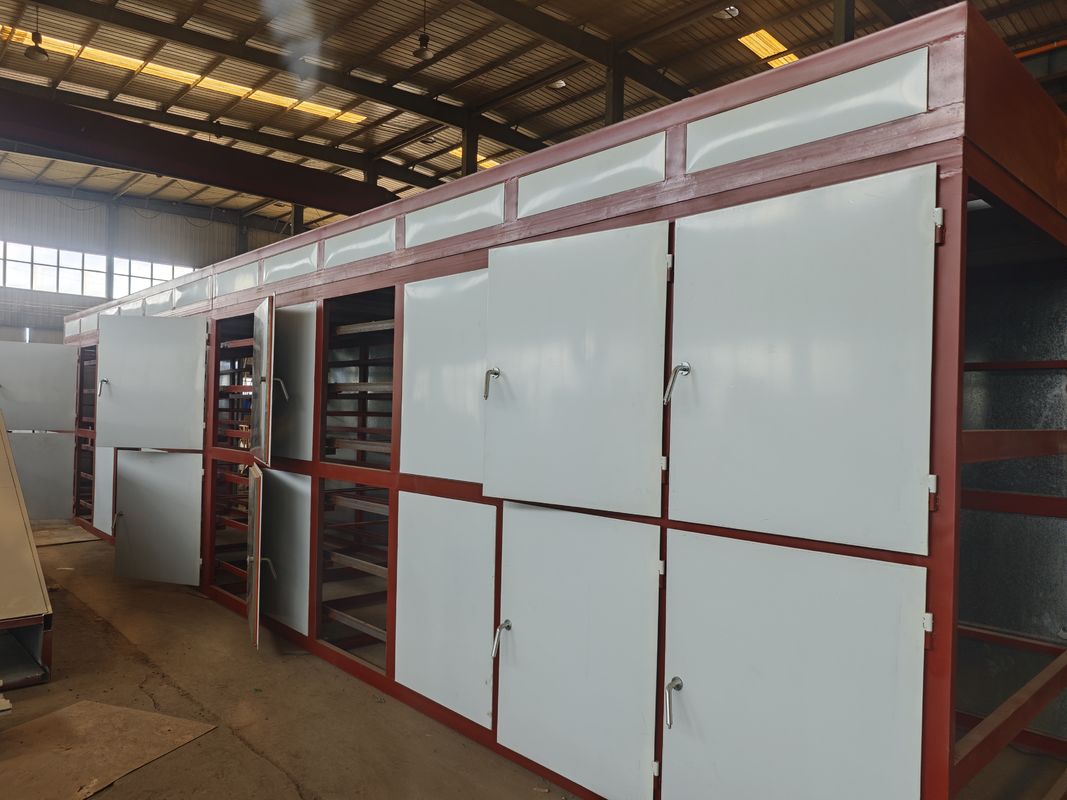

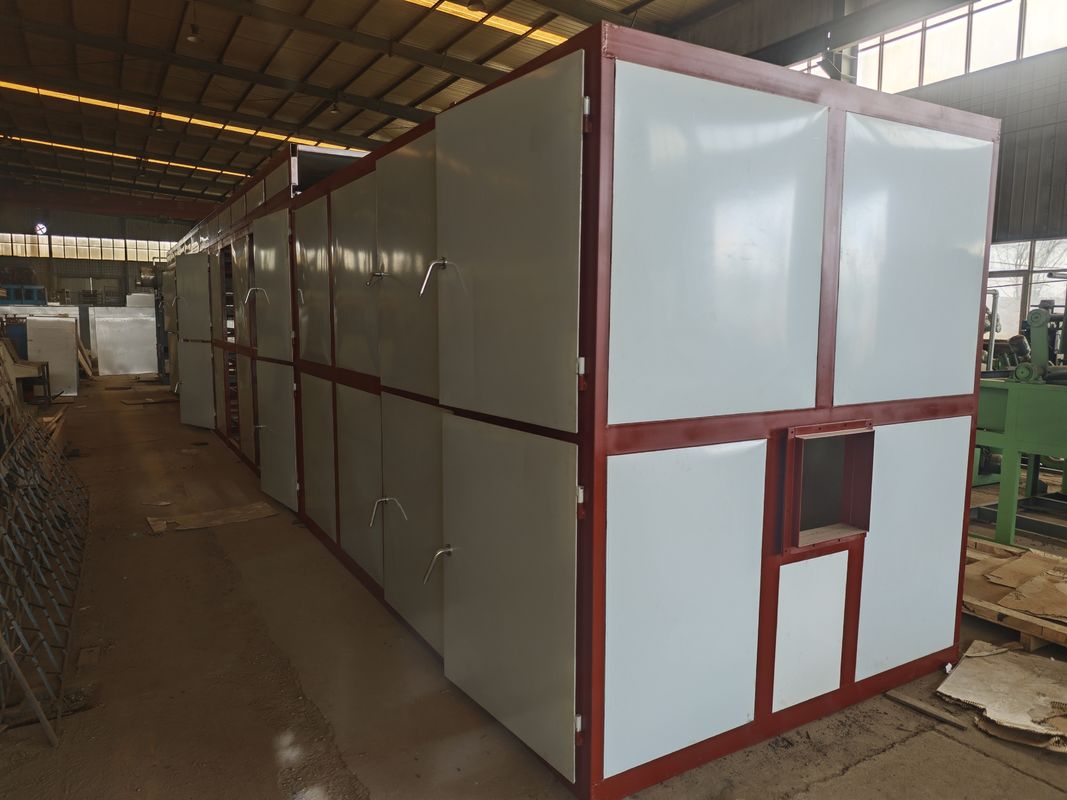

metallic dryer
Simple structure egg tray machine with cheaper investment
1*3 molds paper egg tray machine 1000pcs/h capacity forming part
1*4 molds paper egg tray machine 1500pcs/h capacity forming part
Various capacity egg tray machine / egg tray production line we can make
|
Egg Tray Mold Quantity
|
1pcs
|
2pcs
|
3pcs
|
4pcs
|
12pcs(3pcs*4)
|
16pcs(4pcs*4)
|
24pcs(3pcs*8)
|
32pcs(4pcs*8)
|
40(5pcs*8)
|
48(6pcs*8)
|
|
Raw material
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
|
Egg tray Capacity(pcs/hour)
|
350
|
700
|
1000
|
1300
|
2000
|
2500
|
3000
|
4000
|
5000
|
6000
|
|
Net weight per piece (gram)
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
70-75
|
|
Waste paper consumption
|
0.025ton / h
|
0.06ton / h
|
0.1ton / h
|
0.13ton / h
|
150kg/ h
|
150kg/h
|
188kg/h
|
225kg / hour
|
375kg/h
|
450kg/h
|
|
Water Consumption
|
0.075ton / h
|
0.15ton/h
|
0.22ton / h
|
0.3ton / h
|
0.45ton / h
|
0.6ton/h
|
0.68ton/h
|
0.9ton / h
|
1.1t/h
|
1.35ton/h
|
|
Natural Gas Consumption of Dryer
|
12cbm/h
|
25cbm/h
|
45cbm/h
|
60cbm/h
|
75cbm/h
|
90cbm/h
|
110cbm/h
|
120cbm/h
|
150cbm/h
|
180cbm/h
|
|
Boiler model (natural gas fuel Kcal)
|
200*103
|
300*103
|
450*
|
600*103
|
800*103
|
1000*103
|
1200*103
|
1500*103
|
1800*103
|
2000*103
|
|
Worker requirement
|
2-3workers
|
3-4workers
|
4-6workers
|
4-6workers
|
5-7workers
|
5-7workers
|
8-10workers
|
8-10workers
|
10-12
|
10-12
|
|
Power Requirement
|
Without dryer
|
20KW
|
30KW
|
40KW
|
45KW
|
70KW
|
80KW
|
100KW
|
100KW
|
|
|
|
With dryer
|
30KW
|
45KW
|
60KW
|
65KW
|
100KW
|
120KW
|
130KW
|
150KW
|
180kw
|
200kw
|
|
Area of workshop
|
Without dryer
|
More than100M²
|
More than 100 M²
|
More than 120 M²
|
More than 150 M²
|
More than
200 M²
|
More than 200 M²
|
More than 250 M²
|
More than 250 M²
|
|
|
|
With dryer
|
More than200 M²
Dryer-12M
|
More than 240M²
dryer-16M
|
More than300M²
Dryer-16M
|
More than 320 M²
dryer-18M
|
More than 400M²
Dryer18M
|
More than 400M²
Dryer20M
|
More than 520M² dryer30M
|
More than 520M²
Dryer32M
|
600m2
Dryer 36m
|
750m2
Dryer 40m
|
|
Container Requirement
|
Without dryer
|
20ft*1
|
20ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
40ft*1
|
|
|
|
With dryer
|
40ft*2
|
40ft*2+20ft*1
|
40ft*3
|
40ft*3
|
40ft*4
|
40ft*4
|
40ft*5
|
40ft*5
|
40ft*6+20ft*1
|
40ft*7
|
|
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you.
|
2500-3000pcs/h capacity 4*4 molds egg tray machine technical data
|
Egg Tray mould quantity
|
16pcs (4*4)
|
|
Raw material
|
Waste paper
|
|
Output for egg tray
|
2500-3000pcs/h
|
|
Net weight per piece
|
70g-75g
|
|
Waste paper consumption
|
225kg/h
|
|
Water consumption
|
0.68t/h
|
|
Natural gas consumption
|
60cbm/h in summer
|
|
Workshop dimension
|
>30M*W10M*H5M with dryer
|
|
Installed Power
|
114kw around
|
|
Motor efficiency
|
70% of installed power 114kw
|
|
Machine Weight
|
20 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
End product of paper egg tray machine
Payment Terms
|
|
Delivery time
|
About 75 working days after receiving the deposit.
|
|
|
Payment term
|
BY T/T first advance40%, balance 60% be paid before machine delivery
|
|
|
Warranty time
|
1 year after the Egg tray machine received.
|
|
|
Container quantity
|
3*40GP container
|
|
|
Installation
|
|
1. Usually, all installation and debugging work will be done before shipment.
2. We will offer online support after sales services for problems during installation and testing.
3. Buyer needs to build underground type 2 water pools with size of 2.5m*2.5m*1.5m (L*W*Depth)and 2 pulp pools with size of 2.5m*2.5m*1.5m(L*W*Depth).
|
