4000-5000pcs/h Recycled Automatic Waste Paper Paper Pulp Egg Tray Machine Egg Tray Production Line By Wanyou PLC Controlled
This paper egg tray production line uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays.
It has 2 types forming method: one is Reciprocating Type, the other is Rotary Type Egg Tray Making Machine.
It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Technical parameters of egg tray production line:
|
Egg Tray Mold Quantity
|
40(5pcs*8)
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity(pcs/hour)
|
5000
|
|
Net weight per piece (gram)
|
70-75
|
|
Waste paper consumption
|
375kg/h
|
|
Water Consumption
|
1.1t/h
|
|
Natural Gas Consumption of Dryer
|
150cbm/h
|
|
Boiler model (natural gas fuel Kcal)
|
1800*103
|
|
Worker requirement
|
10-12
|
|
Power Requirement
|
Without dryer
|
Not suggested
|
|
With dryer
|
180kw
|
|
Area of workshop
|
With dryer
|
600m2
|
|
Container Requirement
|
Without dryer
|
Not suggested
|
|
With dryer
|
40HQ*5
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
|
Advantage : 1.capacity 350/700/1000/1300/2000/3000/4000/5000/6000pcs per hour
2.waste paper as raw materials
3.machine including making pulp unit ,moluding unit and dryer unit
4.computer control
1. Pulping system
vibration screen.
mixer; pulp pump;water pump,control cabinet for pulping system,etc

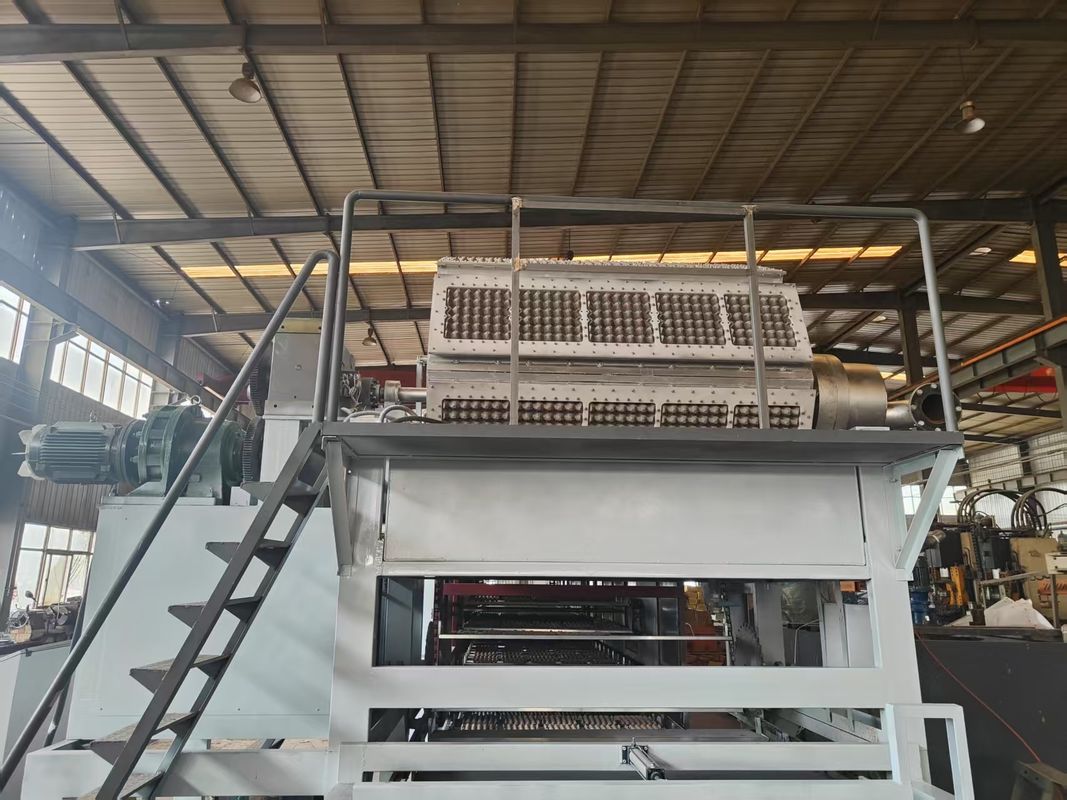

2. Forming system
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
Egg box Machine can produce various trays/cartons with different moulds as per your specification or samp...
3. Drying system
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.

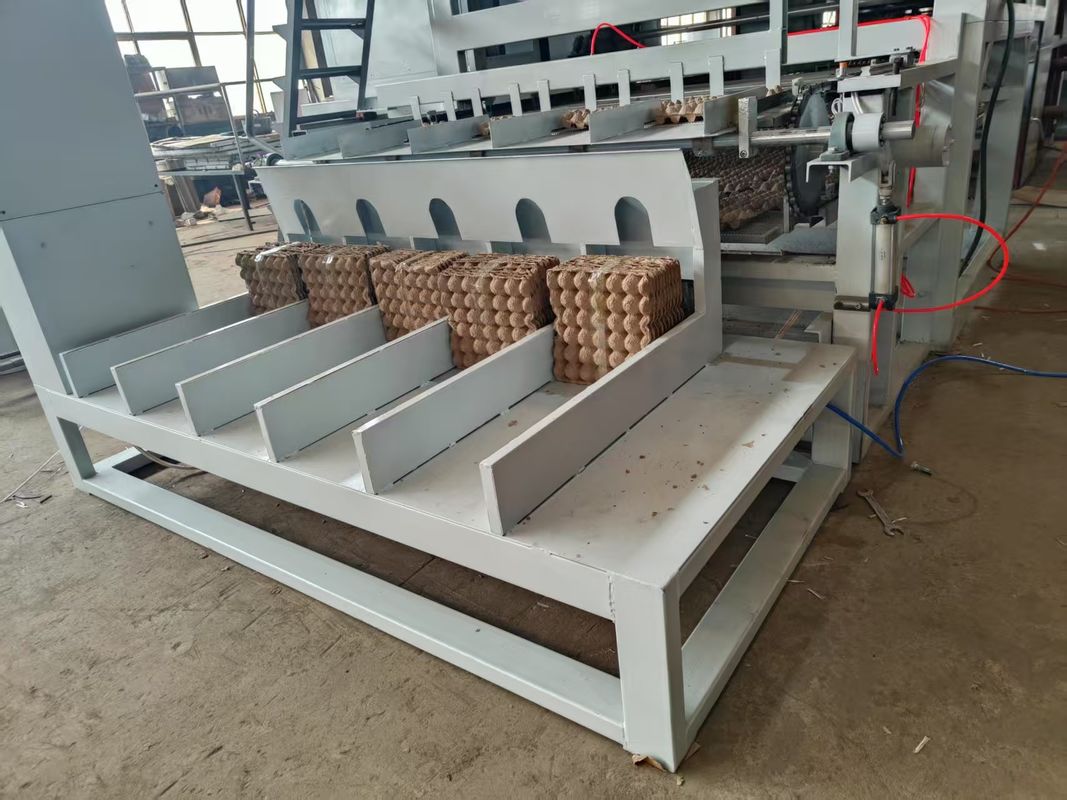

4. Stacking system
The finished products will be counted and stacked automatically after drying.
