3000pcs/h 4+4 Molds Automatic Egg Tray Machine Production Line Using Recycled Paper Pulp to Create Various Types of Egg Trays and Cartons PLC Controlled
This paper egg tray machine production line uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays.
It is Rotary Type Egg Tray Making Machine.
It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.
Technical parameters of egg tray production line:
|
Egg Tray mould quantity
|
16pcs (4*4)
|
|
Raw material
|
Waste paper
|
|
Output for egg tray
|
2500-3000pcs/h
|
|
Net weight per piece
|
70g-75g
|
|
Waste paper consumption
|
225kg/h
|
|
Water consumption
|
675kg/h
|
|
Natural gas consumption
Diesel consumption
|
60cbm/h in summer
40kg/h in summer
|
|
Workshop dimension
|
>40M*W15M*H5M
|
|
Installed Power
|
110kw around
|
|
Motor efficiency
|
70% of installed power 110kw
|
|
Machine Weight
|
25 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
Advantage : 1.capacity 350/700/1000/1300/2000/3000/4000/5000/6000pcs per hour
2.Using waste paper as raw materials
3.machine including making pulp unit ,moluding unit and dryer unit
4.computer control
1. Pulping system
vibration screen, mixer; pulp pump;water pump,control cabinet for pulping system,etc

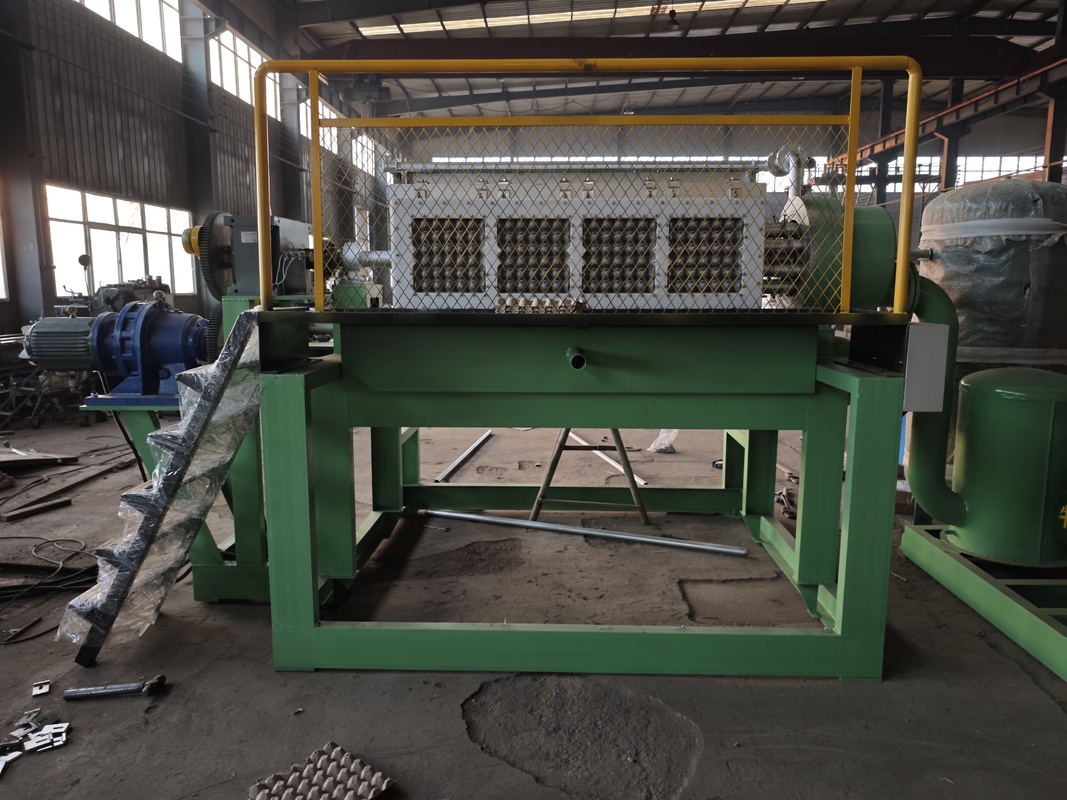

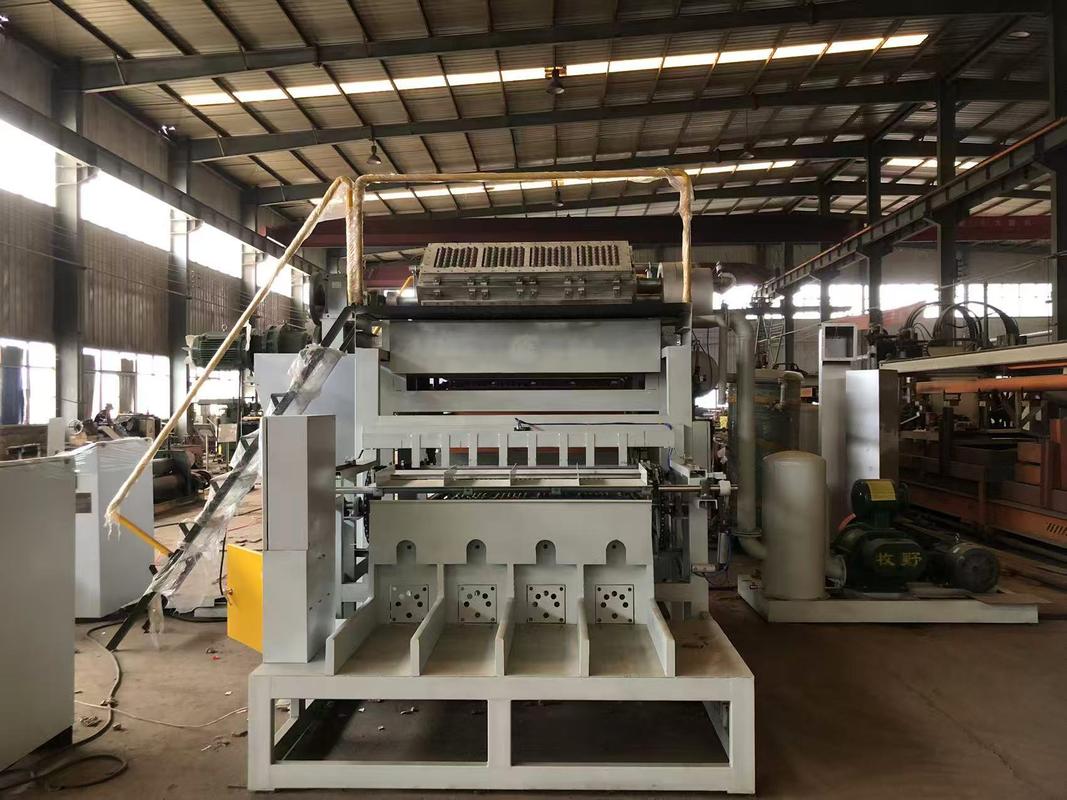

2. Forming system
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
Egg box Machine can produce various trays/cartons with different moulds as per your specification or samp...

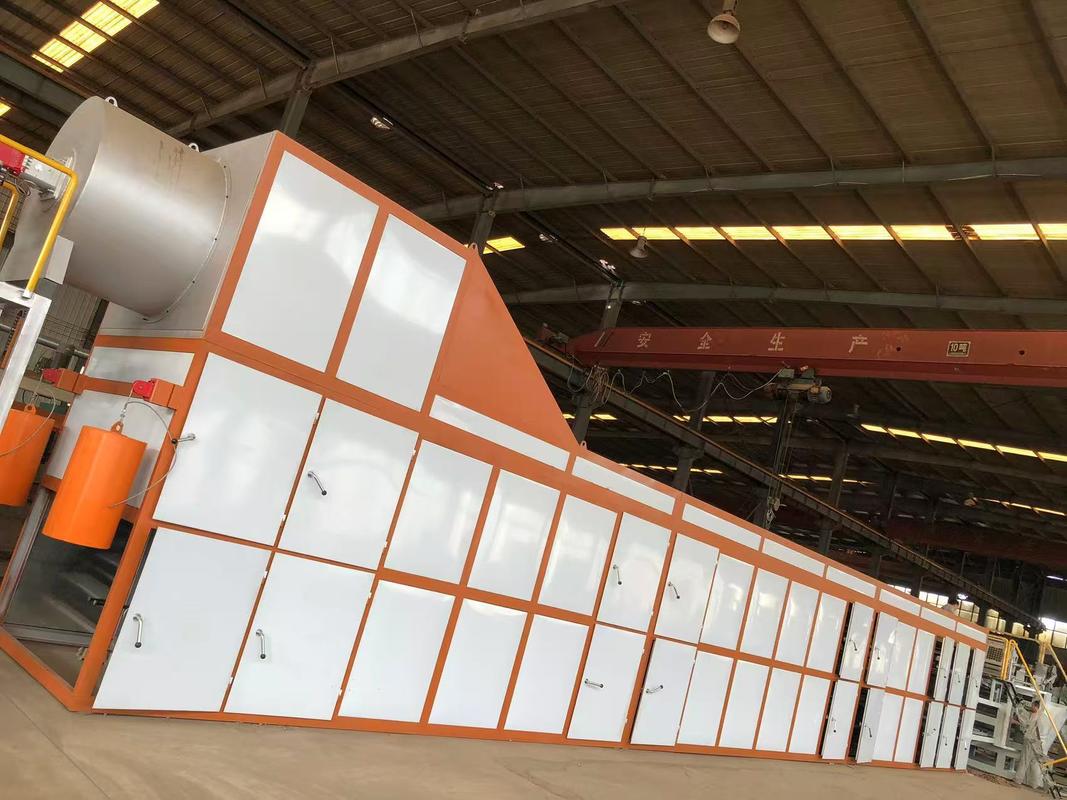

3. Drying system
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
4. Stacking system
The finished products will be counted and stacked automatically after drying.
|
Delivery time
|
About 75 working days after receiving the deposit.
|
|
Payment term
|
BY T/T first advance40%, balance 60% be paid before machine delivery
|
|
Warranty time
|
1 year after the Egg tray machine received.
|
|
Container quantity
|
3*40HQ container with dryer, 20GP*1 without dryer
|
|
Installation
|
|
1. Usually, all installation and debugging work will be done before shipment. 2. We will offer online support after sales services for problems during installation and testing.
3. Engineer charges 120$ per day for installation abroad, buyer offers round-trip air-tickets of engineer from Jinan to Buyer’s country.Also hotel and meal fee during installation abroad will be undertaken by buyer.
|
