Name: Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds
Brand: Jinan Wanyou Packing Machinery Factory
SKU: WY-1
Price: 6800 USD
Availability: InStock

Casa. > prodotti > Uovo di carta Tray Making Machine >

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds

Automatic paper egg tray machine 700pcs/h

Egg carton production line PLC controlled

Paper egg tray making machine aluminum molds

Luogo di origine:

Jinan, Shandong, Cina

Marca:

Wanyou

Numero di modello:

WY-1

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Energia:

20kw-45KW

Caratteristica:

Semiautomatico, di tipo automatico

Prodotti finiti:

Vassoi per uova/vassoi per mele, vassoi per scarpe, cartone per uova, vassoio portabicchieri ecc.

Materia prima:

Carta da giornale di scarto, cartoni del cartone, qualsiasi carta straccia

muffa della macchina:

Alluminio personalizzato, plastica ABS

Peso del vassoio delle uova:

70-75 g/pz

Requisito del lavoratore:

2-3 lavoratori

Tipo di prodotto:

Macchina per i vassoi, Macchina per le cartoncini.

Voltaggio:

380 V/50 Hz

Keywods:

macchina per vassoi per uova di carta / linea di produzione di cartoni per uova

carburante:

gas naturale/diesel/legna/carbone come vostra richiesta

Evidenziare:

Automatic paper egg tray machine 700pcs/h

Egg carton production line PLC controlled

Paper egg tray making machine aluminum molds

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 set

Prezzo

USD6800

Imballaggi particolari

in contenitore

Tempi di consegna

25 giorni lavorativi dopo aver ricevuto il pagamento del deposito

Termini di pagamento

T/T,L/C,Western Union,MoneyGram

Capacità di alimentazione

10 set al mese

Prodotti correlati

Video

Semi Automatic Paper Egg Tray Machine 700pcs/h PLC Controlled Reciprocating forming Egg Carton Production Line

Ottieni il miglior prezzo

Video

Macchina semiautomatica per porta uova in carta 700 pcs/h Opzione controllata da PLC progettata per le piccole imprese

Ottieni il miglior prezzo

Video

Macchina semiautomatica per porta uova di carta struttura semplice con 1500 pezzi all'ora progettata per le piccole imprese

Ottieni il miglior prezzo

Video

Macchina di produzione di vassoi per uova di carta Semi-automatica struttura semplice Produrre 1500 pezzi all'ora Progettata per le piccole imprese

Ottieni il miglior prezzo

Contattaci

+8615665703348

jnrunliang@hotmail.com

Contatta ora

Descrizione del prodotto

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds

Product Overview

This 700pcs/h automatic egg tray machine targets small workshops, poultry farms and new packaging startups. The egg tray machine makes eco-friendly, biodegradable egg trays, egg cartons, apple trays, shoe trays, industrial packaging trays etc. Simple operation, low startup cost and small floor space make them perfect for beginners.

Egg Tray Machine Production Flow

Put waste paper into egg tray machine hydraulic pulper, mix with water to make pulp

Pump pulp into egg tray forming machine tank

Machine adsorbs pulp on mold to form wet egg trays

Machine demolds wet trays automatically

Workers carry wet trays to sun drying area

Dry finished trays for sales or packaging

Who This Egg Tray Machine Fits

Small poultry farms needing self-made egg packaging tray

New entrepreneurs with limited startup budget

Family small workshops with small land area

Local packaging suppliers taking small bulk egg tray orders

Regions with good sunlight to save dryer investment

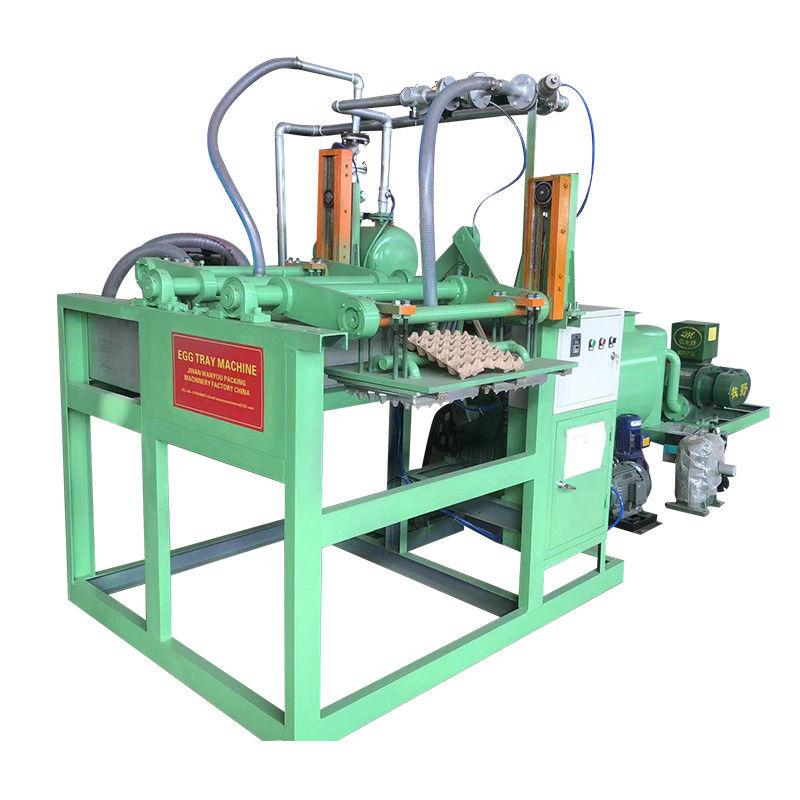

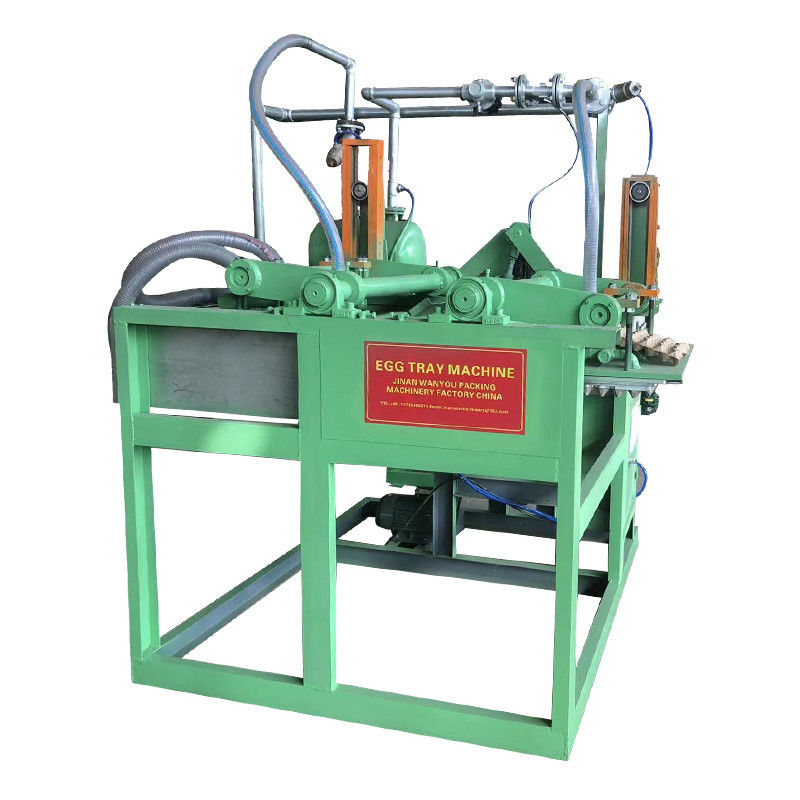

Turnover type paper egg tray machine 1*2 molds

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 0

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 1

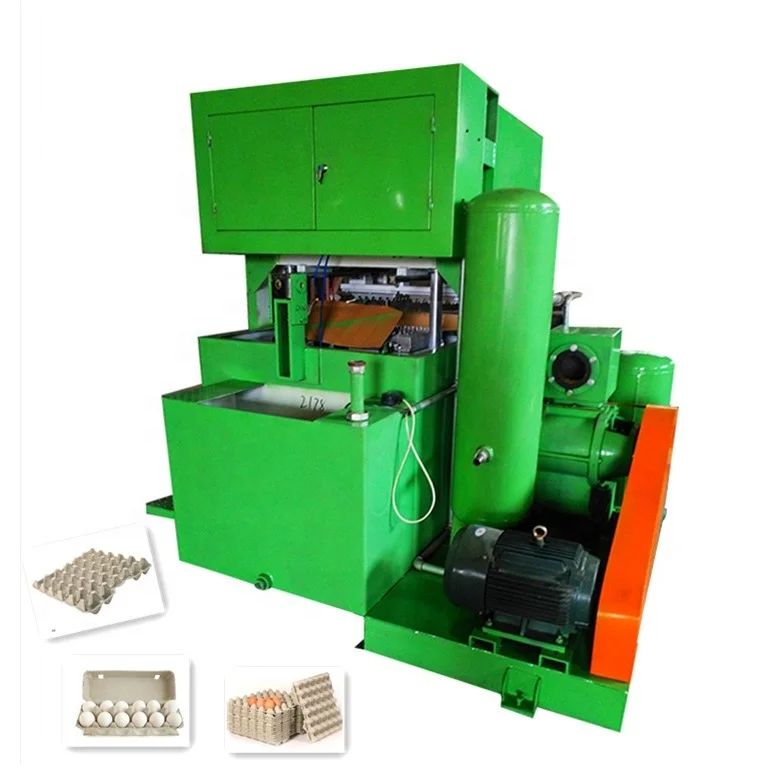

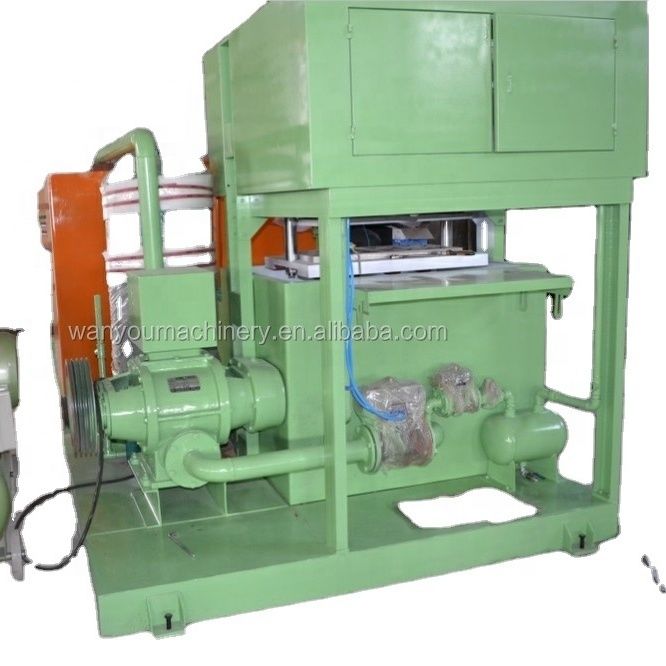

Reciprocating forming type paper egg tray machine 2 molds

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 2

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 3

Technical Parameters of the egg tray machine

Item	Turnover Type 700pcs/h	Reciprocating Type 700pcs/h
Rated Capacity	700 egg trays / hour	700 egg trays / hour
Forming Structure	Flip turnover mold	Back-forth reciprocating mold
Total Installed Power	26KW	28 KW
Standard Voltage	380V / 50Hz (custom 220V/60V available)	380V / 50Hz (custom 220V/60V available)
Raw Material	Waste paper, cardboard, waste pulp trays	Waste paper, cardboard, waste pulp trays
Paper Consumption	53 KG per hour	53 KG per hour
Water Consumption	150 KG per hour	150 KG per hour
Required Workers	2–3 people	1–2 people
Weight of Main Machine	2.1Ton	2.5 Ton
Matching Mold	Standard 30-cell egg tray mold (custom molds accepted)	Standard 30-cell egg tray mold (custom molds accepted)
Warranty Period	12 months for core motors & pumps	12 months for core motors & pumps
Floor Space Needed	Min 70㎡ workshop + drying yard	Min 60㎡ workshop + drying yard

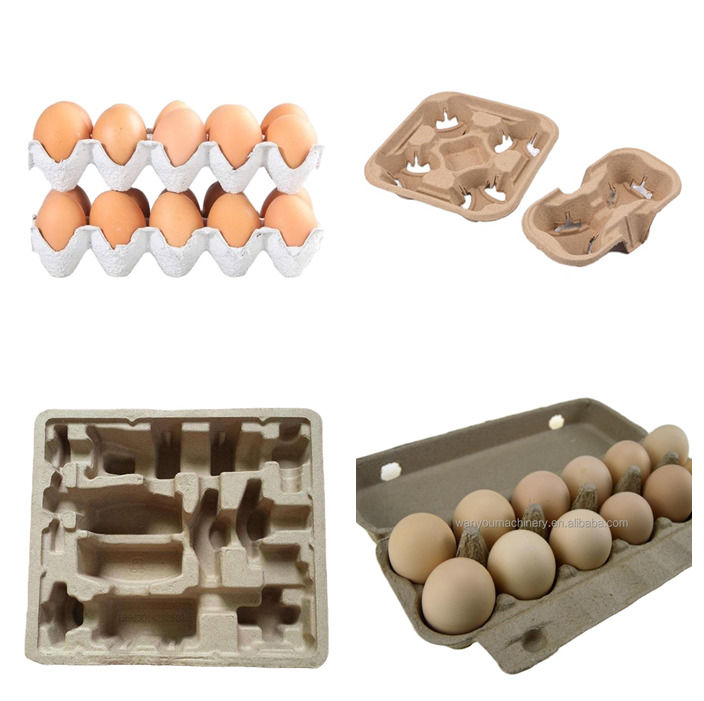

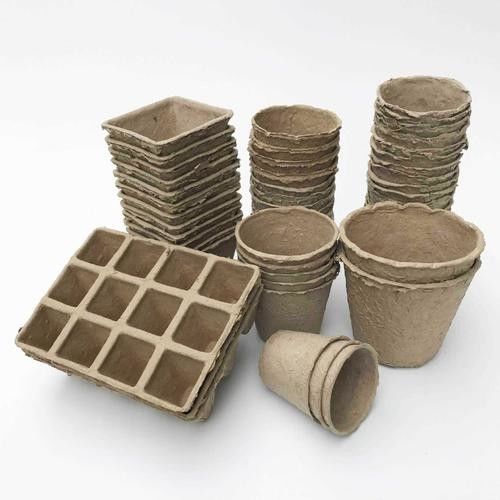

Finished product by this egg tray machine

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 4

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 5

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 7

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 8

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 9

Automatic Paper Egg Tray Machine Egg Carton Production Line 700pcs/h PLC Controlled With Aluminum Molds 10

Payment and delivery

Trade terms		FOB Qingdao or EXW Factory
Delivery time		About 35 working days after receiving the deposit.
Payment term		BY T/T 40%DEPOSIT+60%BALANCE.
Time of payment		When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time		2 years after the Egg tray machine received.
TERMS OF DELIVERY		FOB Qingdao Port, China
Package		In container

Our machine can provide customer 1 year warranty, which guarantee our machine quality.

Choose us, you will not regrate.

Choose us, you will earn the best profit.

Choose us, you will get the best quality machine.

Welcome to contact us.

Cindy: +86 15665703348 (Whatsapp/WeChat)
